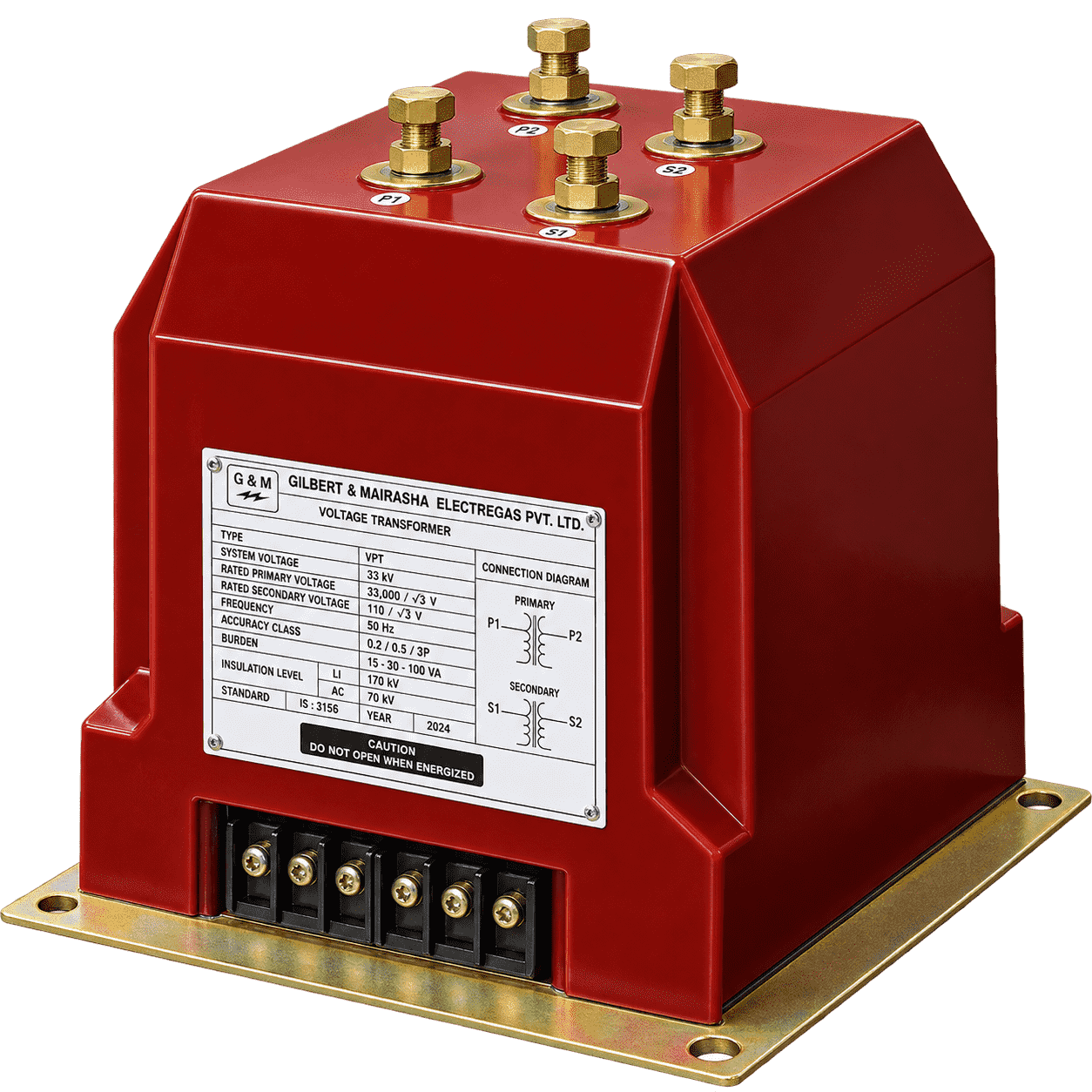

MV Indoor Resin Cast Potential Transformers
| Parameter | Specification |
|---|---|
| Reference Standard | IEC, IS or ANSI |
| System Voltage (Um) | Up to 33 kV |
| Insulation Level | 0.66 kV / 3 kV |
| Rated Primary Voltage | Up to 33000/√3 V |
| Rated Secondary Voltage | 110/√3 or 100/√3 V |
| Burden | As per client requirement |
| Metering Accuracy Class | 0.2, 0.5, 1.0 or 3.0 |
| Protection Accuracy Class | 3P or 6P |
| Insulation Class | B or higher |
| Frequency | 50 or 60 Hz |
