We specialize in offering quality L.T. Tape Wound & Cast Resin Transformers of multi range that are manufactured using quality components, which are procured from reliable vendors. These are acknowledged by clients for long functional life, high efficiency, hassle-free performance, and robust construction. These are widely used in various industries for measuring, protection, & for special protection purposes (CLASS: PS) (restricted earth fault & differential protection systems)

We provide various types of L.T. TAPE WOUND/CAST RESIN CURRENT TRANSFORMER as per relevant Standards (IS/IEC...) as follows:

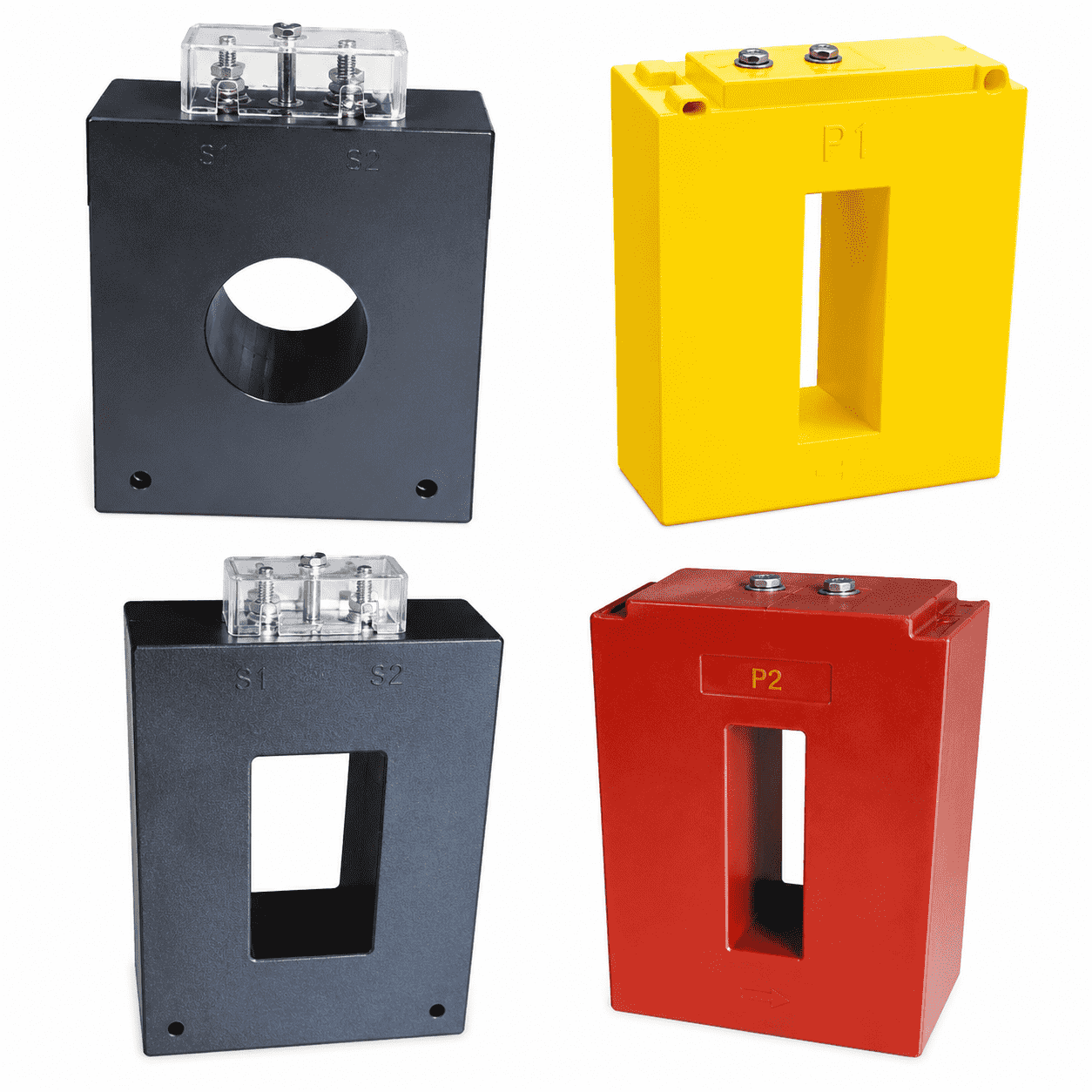

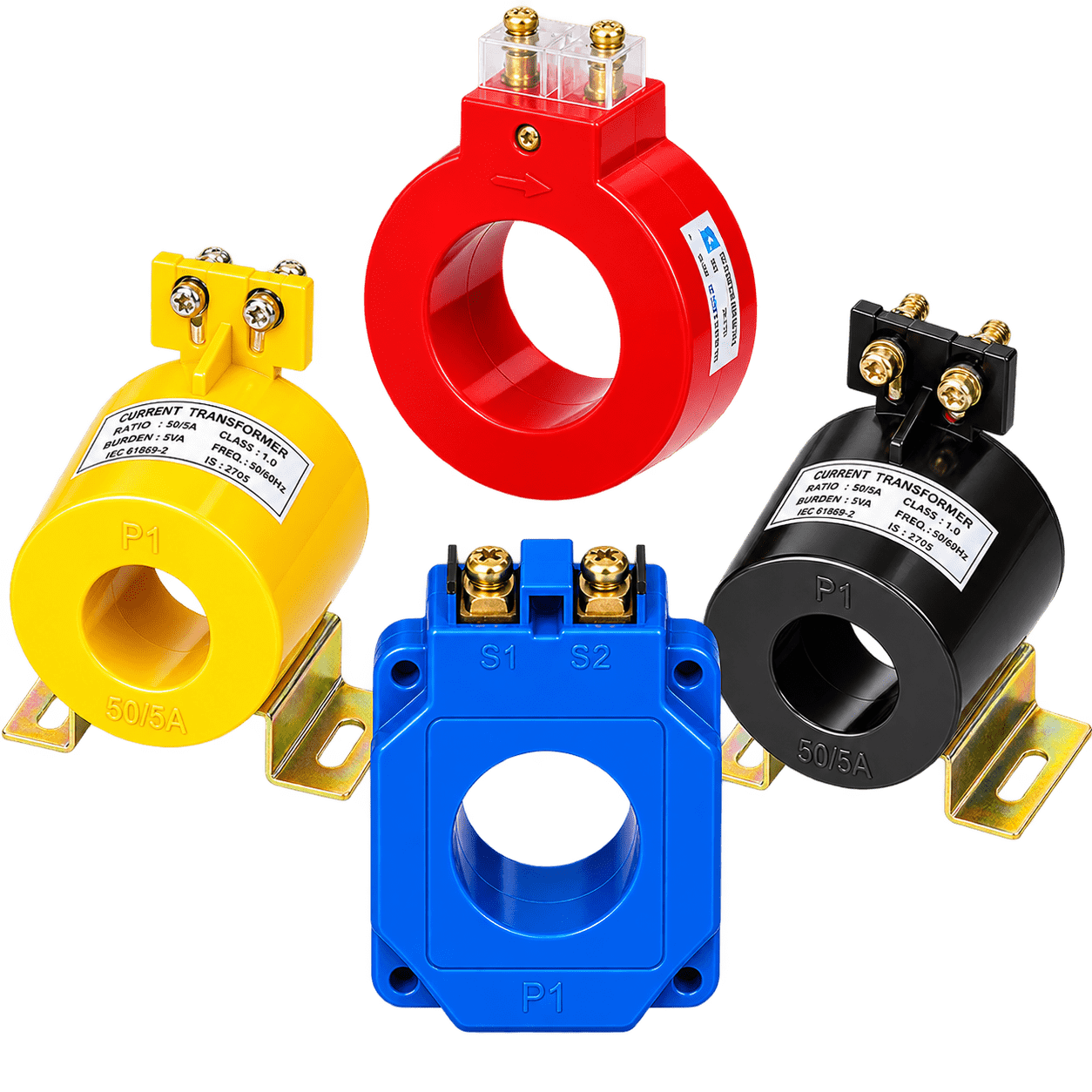

  • Window type Current Transformer
  • Bar Primary type Current Transformer
  • Wound primary type(WPL) Current Transformer

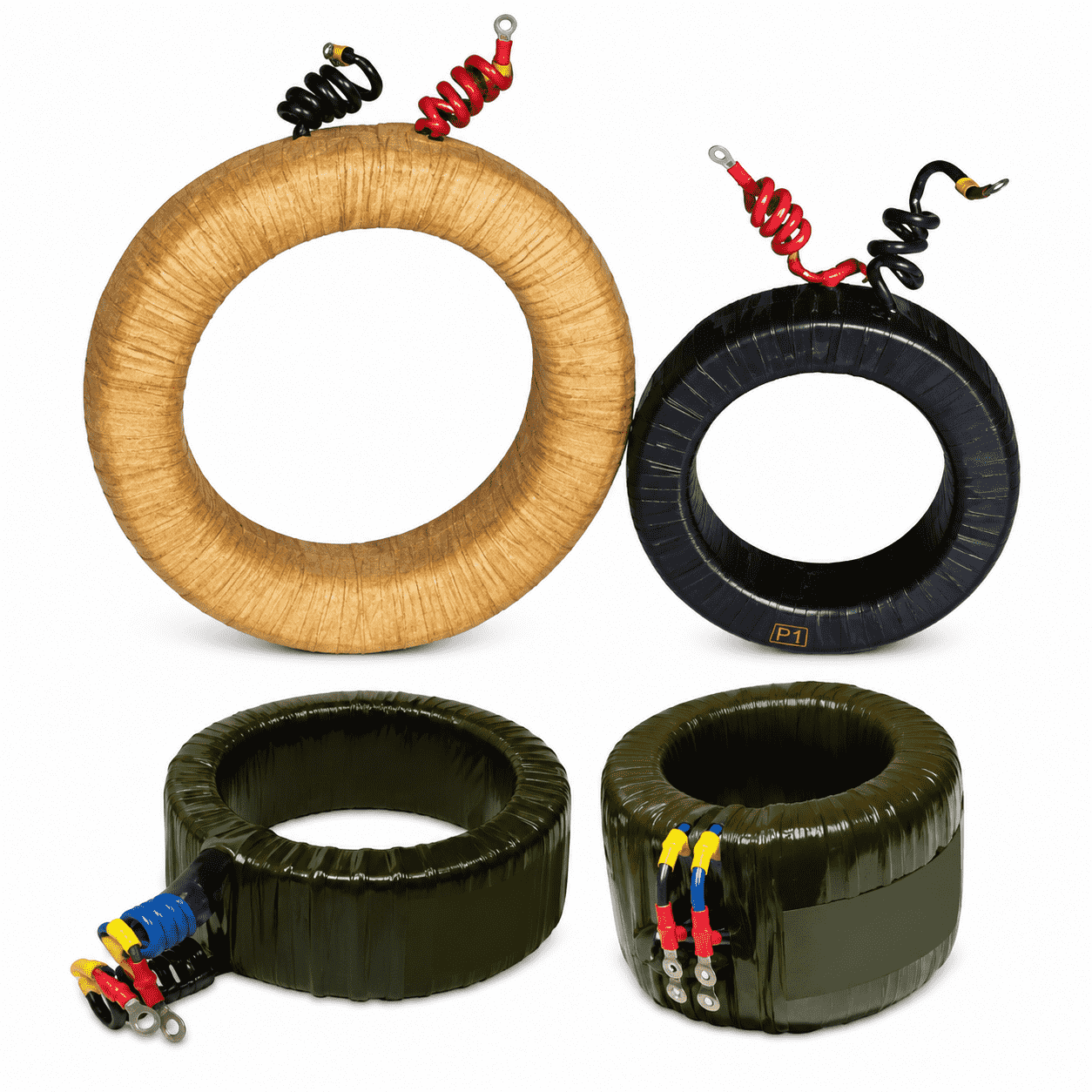

  • Varnished Fiber Glass Tape insulated Current Transformer
  • WTI or oil-immersed current transformer

Technical Details:

  • For metering Accuracy class: 0.1, 0.2S, 0.5S, 0.2, 0.5,1,3,5
  • For Protection: 5p, 10p... ALF (5, 10, 20...)
  • For Special protection (Class PS): any knee point voltage Imag @ (Vk), Vk/2, Vk/4.
  • Insulation class as per IS (A,E,B,F,H)
  • System voltage: up to 1.1kv

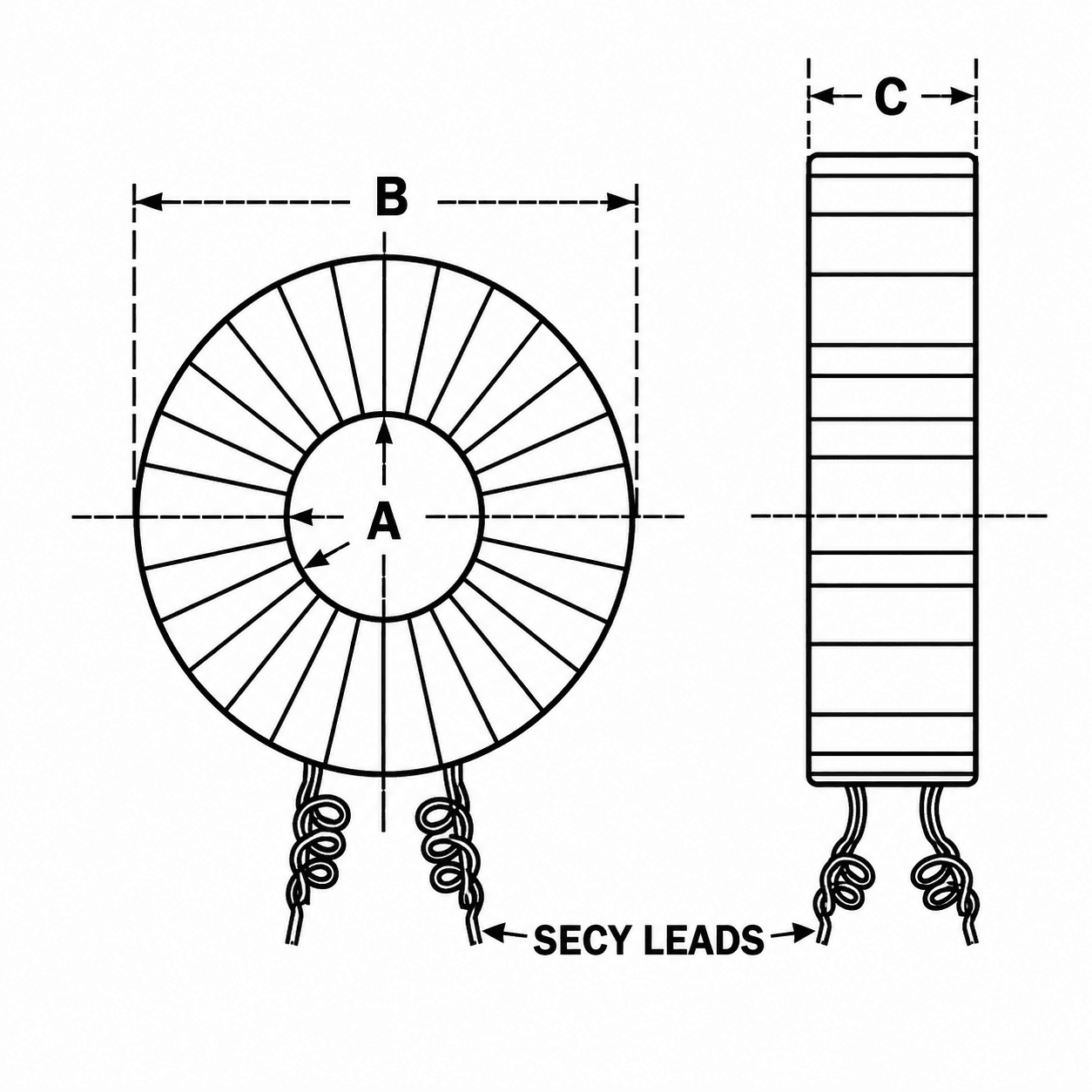

STANDARD DIMENSIONS FOR PVC ENCAPSULATED CT'S

Ratio Rated Burden VA Accuracy Class Approximate Overall Dimensions in mm A B C
50/5A or 1A 5 5.0 30 85 50
50/5A or 1A 5 5.0 30 85 50
75/5A or 1A 5 5.0 30 85 50
100/5A or 1A 5 1.0 30 86 50
150/5A or 1A 5 1.0 30 85 50
200/5A or 1A 10 1.0 50 100 50
250/5A or 1A 10 1.0 50 100 50
300/5A or 1A 10 1.0 50 100 50
400/5A or 1A 15 1.0 60 105 40
500/5A or 1A 15 1.0 60 105 40
600/5A or 1A 15 1.0 60 105 40
800/5A or 1A 15 1.0 80 140 40
1000/5A or 1A 15 1.0 80 140 40
1200/5A or 1A 15 1.0 125 180 40
1600/5A or 1A 15 1.0 125 180 40
1600/5A or 1A 15 1.0 125 180 40
2000/5A or 1A 15 1.0 125 180 40
2400/5A or 1A 15 1.0 125 180 40
2500/5A or 1A 15 1.0 125 180 40
3000/5A or 1A 15 1.0 125 180 40
